XL Bolt-On Data Collector (Version 1.8.9.2)
free demo sulzer-vorne products   date sheets for vorne products   orne Bolt-On Products Pricing Button Image
Collect and Aggregate
Data Automatically
  • Automatically export data from multiple XL devices.
  • Aggregate this data for asset-to-asset comparison.
  • Generate reports with data from multiple assets.
  • Automatically log data from Vorne XL devices to a database.
The XL Bolt-On Data Collector! This application handles all communication with the Vorne XL Series Productivity Appliances and periodically harvests the data that is buffered inside each device. As a MS Windows service, the XL Bolt-On Data Collector works in the background, identifies any new data on each device, and copies that data into your own database for archival and reporting.

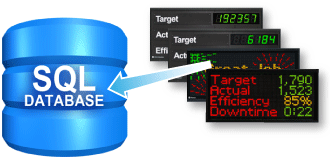

SQL-Database-image

Vorne XL products allow users to access the data in each device. This requires a software tool to query the device using the HTTP Post command as outlined in the developer’s manual.

The XL Bolt-On Data Collector completely automates this task, automatically reading data from Vorne appliances and storing it in a database. This eliminates the need for custom programming, allowing you to be up and running in a matter of minutes.


Features and Benefits:

  • Simple configuration - Supply IP address, device name, device database key, ODBC Connection and Data Capture Frequency.
  • Supports multiple XL devices – one or many on a network.
  • Merges data from multiple devices into single database using device key for record identification.
  • Can override default database to route individual device data to different databases on a per-device and per-table basis.
  • Automatically lists enumerations with corresponding strings to preserve original meaning in case of future changes.
  • Saves collection time/date along with device record time/date.
  • Automatically converts Vorne device date/time format to data base date/time format.
  • Reflects real-time information from devices into tables so that common database tools can be used for monitoring current data. Simple Licensing – file key.
  • Free Demo Runtime!
  • FAST and EASY!

Supported Operating Systems:

  • Windows 7, Windows 8.1, Windows 10
    Windows Server 2008, Windows Server 2012
  • Supported Database Servers:
    MS SQL 2012, MS SQL 2014
  • Supported XL Firmware:
    XL 0.6.0.51 or higher
